UV Laser Marking Machine for flexible films and rigid plastics
UV lasers are highly effective at marking on a wide range of materials, including plastic, films and foils, ceramic, and rubber. UV lasers employ a shorter ultraviolet wavelength and lower power compared to fiber and CO2 lasers. With their ability to create high-contrast marks using minimal heat, they are particularly useful for sensitive materials like flexible packaging and glass.
Main Features
The Cotajet UV laser coder is the ideal solution for permanent marking on flexible films and rigid plastics, without the need for consumables and whilst maintaining the integrity of the substrate. Providing higher production throughput through fast product marking, and with simple integration into existing lines, the easy-to-use Cotajet laser redefines efficiency.
Technical Parameters
| project | Parametertable | UV-3W | UV-5W | UV-10W |
| characteristic | Machine material | All aluminum sandblasting oxidation |
| Laser | The service life is more than 20000-30000 hours |
| Laser wavelength | 355nm |
| output power | ≥4.2W | ≥6.5W | ≥12W |
| Marking speed | ≤12000mm/s |
| controller | 10.2 inch touch controller |
| Cooling system | Water cooling (with chiller) |

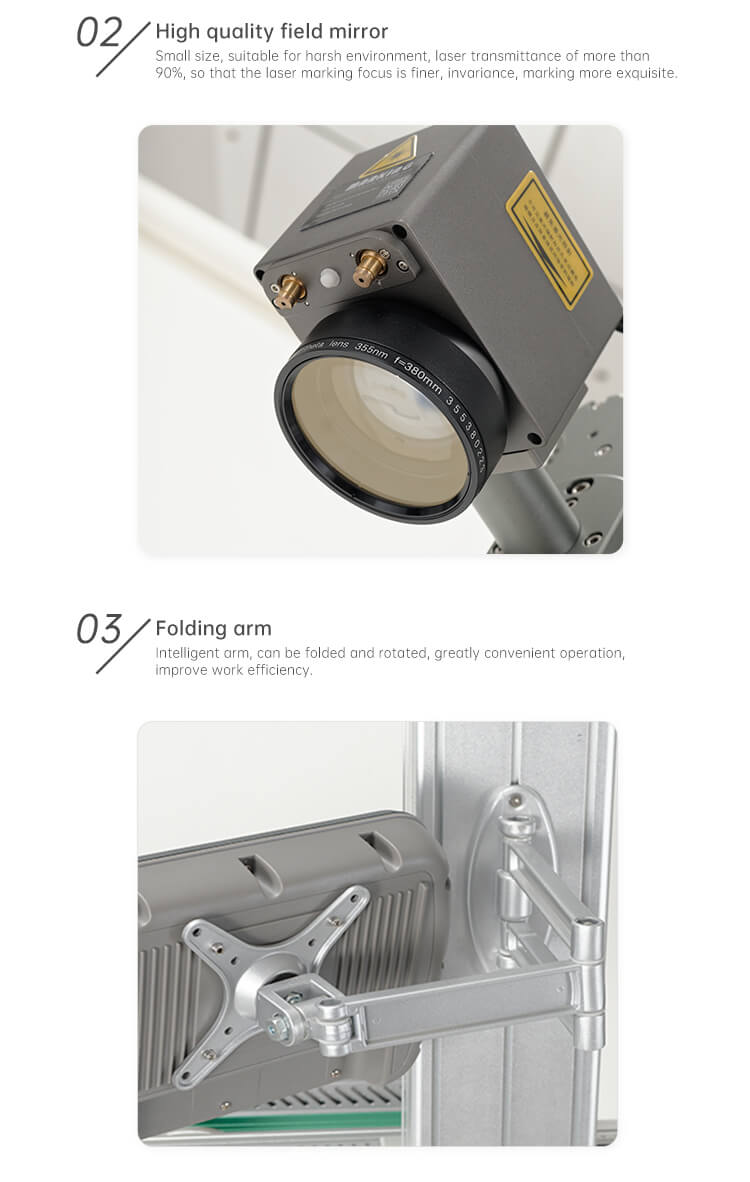

| parameter | Focus lens | 210mm |
| Minimum linewidth | 0.01mm |
| Repetitionaccuracy | 0.001mm |
| Marking range | 110mm*110mm(optinal) |
| Positioning mode | Blue light indication |
| Number of rows | Any line within the marking range |
| Production line speed | 0~130m/min (depending on the material) |
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc |
| jurisdiction | Multi user management authority |
| operating system | Linuxsystem |
| Inkjet mode | Static, analog, encoder |
| Reserved signal | Start, print status, finish, fault |
| data protection | With power failure data protection energy |
| monitor | Provide overspeed alarm function |
| De crossing | Automatic removal of intersections |
| Coding software | Single and double machine code sending |
| Support type | typeface | Chinese and English, numbers, traditional, etc |
| file format | BMP/DXF/HPGL/JPEG/PLT |
| bar code | CODE39,CODE128,CODE126,QR |
| Servicing parameters | Power Supply | 220V/50HZ |
| Power consumption | 800W |
| Net weight of machine | 40kg |

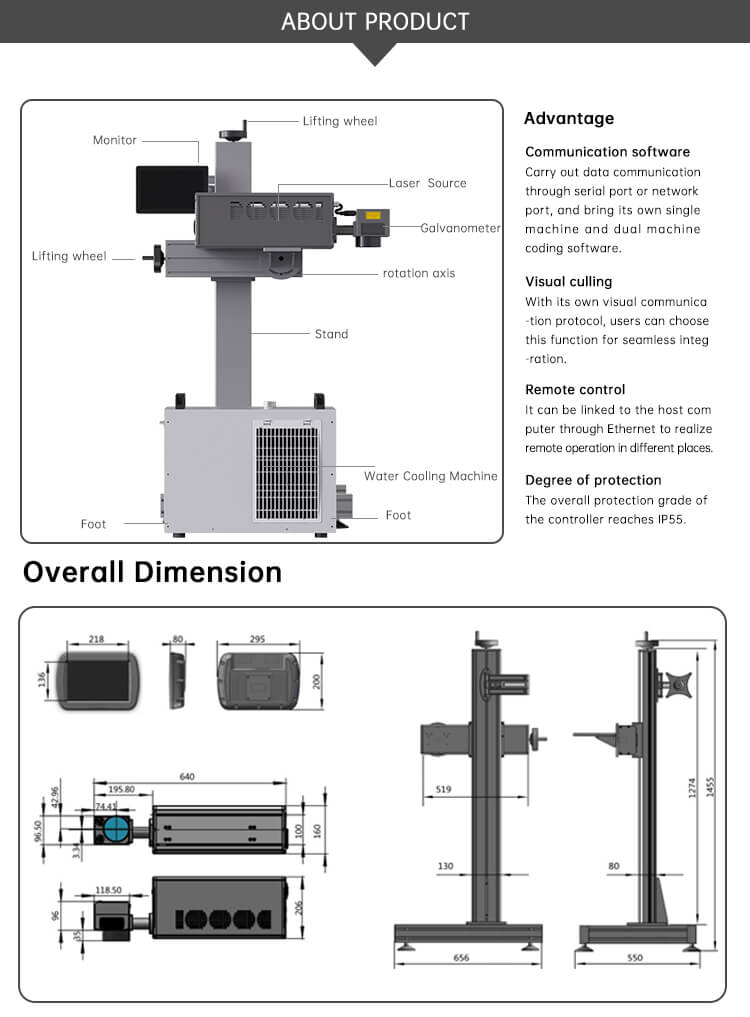

| Overall dimension | 640mmX160mmX206mm |
| environment | requirement | External temperature0℃－45℃;humidity≤95 |
