Fiber Laser Marking Machine For expiry date Coding Aluminum Stainless Steel
The Cotajet is a unique fiber laser marking system designed for quick integration in all types of production lines. Offering unmatched speed and reliability, it is ideal for metal marking applications. It can create permanent marks including data matrix codes, QR codes, serial numbers, alphanumeric characters and logos.

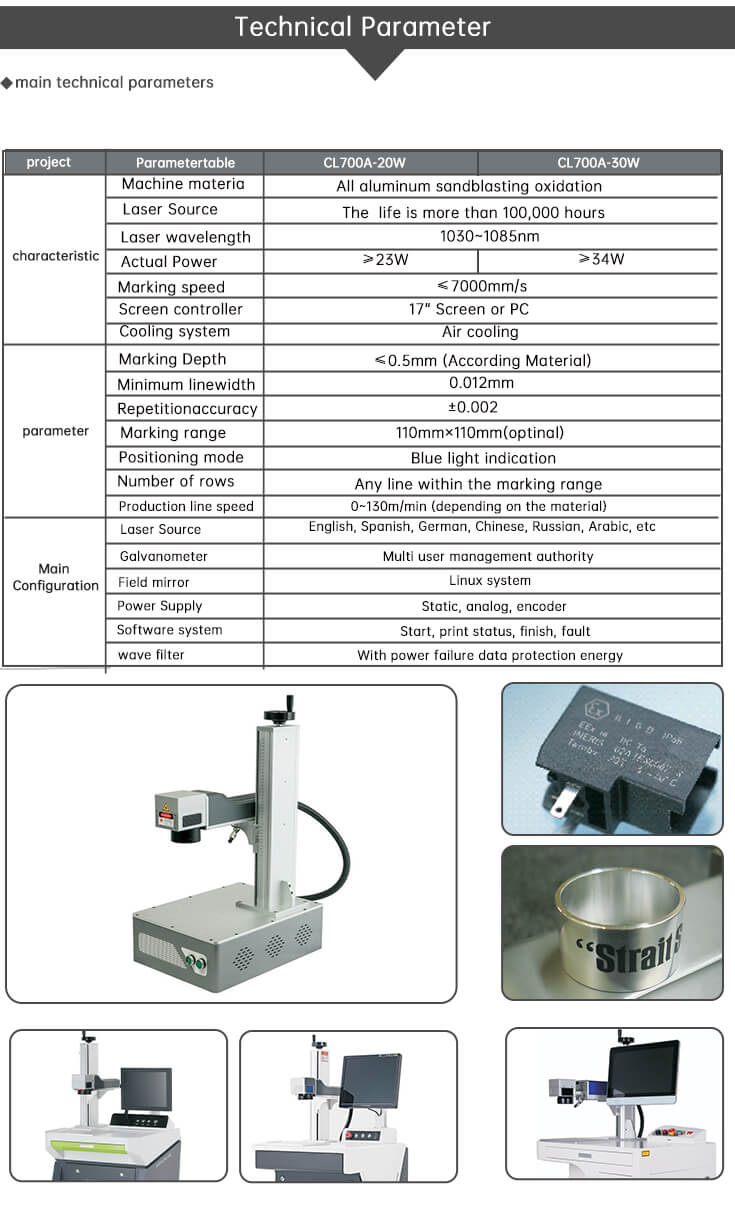

| project | Parametertable | 20W | 30W |
| characteristic | Machine material | All aluminum sandblasting oxidation |
| Laser | The service life is more than 100000 hours |
| Laser wavelength | 1064nm |
| output power | ≥23W | ≥34W |
| Marking speed | ≤12000mm/s |
| controller | 10.2 inch touch controller |
| Cooling system | Air cooling |
| parameter | Focus lens | 165mm |
| Minimum linewidth | 0.012mm |
| Repetitionaccuracy | 0.003mm |
| Marking range | 110mm*110mm(optinal) |
| Positioning mode | Blue light indication |
| Number of rows | Any line within the marking range |
| Production line speed | 0~130m/min (depending on the material) |
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc |
| jurisdiction | Multi user management authority |
| operating system | Linuxsystem |
| Inkjet mode | Static, analog, encoder |
| Reserved signal | Start, print status, finish, fault |
| data protection | With power failure data protection energy |
| monitor | Provide overspeed alarm function |
| De crossing | Automatic removal of intersections |
| Coding software | Single and double machine code sending |
| Support type | typeface | Chinese and English, numbers, traditional, etc |
| file format | BMP/DXF/HPGL/JPEG/PLT |
| bar code | CODE39,CODE128,CODE126,QR |
| Servicing parameters | Power Supply | 220V/50HZ |
| Power consumption | 400W |
| Net weight of machine | 28kg |
| Overall dimension | 530mmX140mmX165mm |
| environment | requirement | External temperature0℃－45℃;humidity≤95 |
