CO2 Laser Marking Machine for Production Line Bottle Coders
The adjustable focus laser marking head with integrated simplified focus technology has been designed for lines with frequent product changeovers. The simplified focus technology allows the laser to quickly adjust the laser working distance and focus, meaning there is no need to move the laser or adjust it for different height or width products. You can mark various sized products without laser adjustment, reducing changeover time and eliminating errors.
Main Characters:
1. Multi-level surface marking: Mark different-sized products in the same marking field with 2.5D technology, helping to save time and more easily manage complex marking
2. Auto-adjustable focal distance: Automatically adjust the focal distance after initial job setup without moving the laser system up and down, reducing errors and user intervention
3.Uniform flat field correction: Maintain exceptional print quality with a uniform spot-size marking across the entire field, with no degradation at the edge.
| Item | Parametertable | CO2-30W | CO2-40W | CO2-60W |
| characteristic | Machine material | All aluminum sandblasting oxidation |
| Laser | The service life is more than20000-30000 hours |
| Laser wavelength | 1060nm |
| output power | ≥38W | ≥43W | ≥70W |
| Marking speed | ≤12000mm/s |
| controller | 10.2 inch touch controller |
| Cooling system | Air cooling |
| parameter | Focus lens | 145mm |
| Minimum linewidth | 0.03mm |
| Repetitionaccuracy | 0.01mm |
| Marking range | 110mm*110mm(optinal) |
| Number of rows | Any line within the marking range |
| Production line speed | 0~130m/min (depending on the material) |
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc |
| jurisdiction | Multi user management authority |
| operating system | Linuxsystem |
| Inkjet mode | Static, analog, encoder |
| Reserved signal | Start, print status, finish, fault |
| data protection | With power failure data protection energy |
| monitor | Provide overspeed alarm function |
| De crossing | Automatic removal of intersections |
| Coding software | Single and double machine code sending |
| Support type | typeface | Chinese and English, numbers, traditional, etc |
| file format | BMP/DXF/HPGL/JPEG/PLT |
| bar code | CODE39,CODE128,CODE126,QR |
| Servicing parameters | Power Supply | 220V/50HZ |
| Power consumption | 800W |
| Net weight of machine | 45kg |

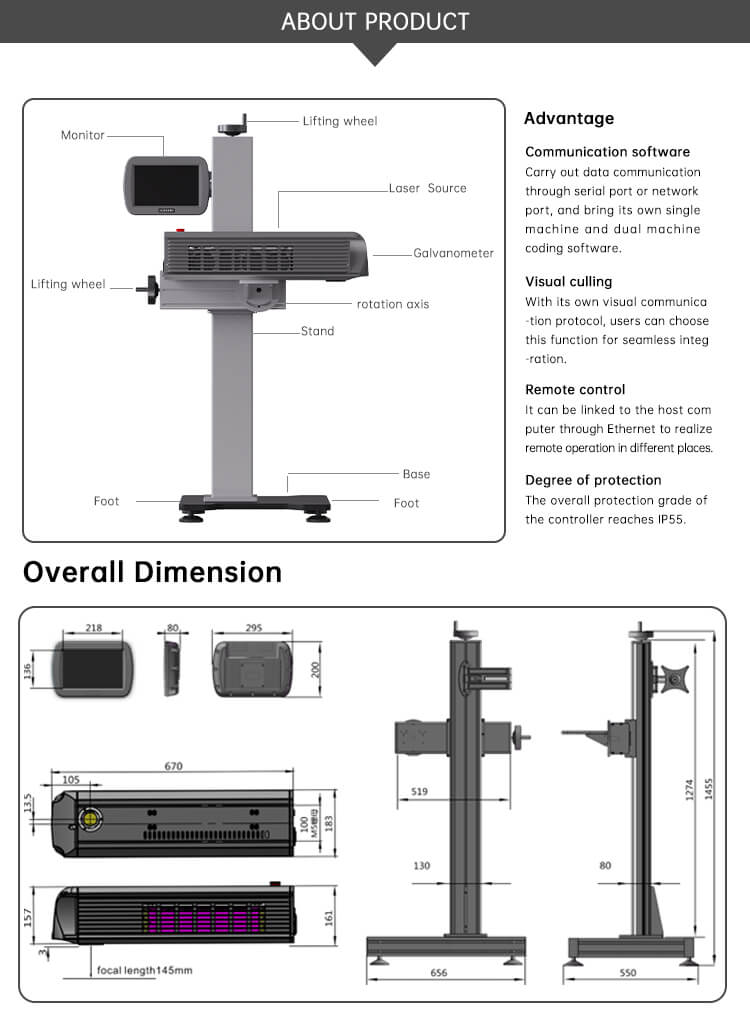

| Overall dimension | nose:666mmX165mmX157mm |
| environment | requirement | External temperature0℃－45℃;humidity≤95 |
